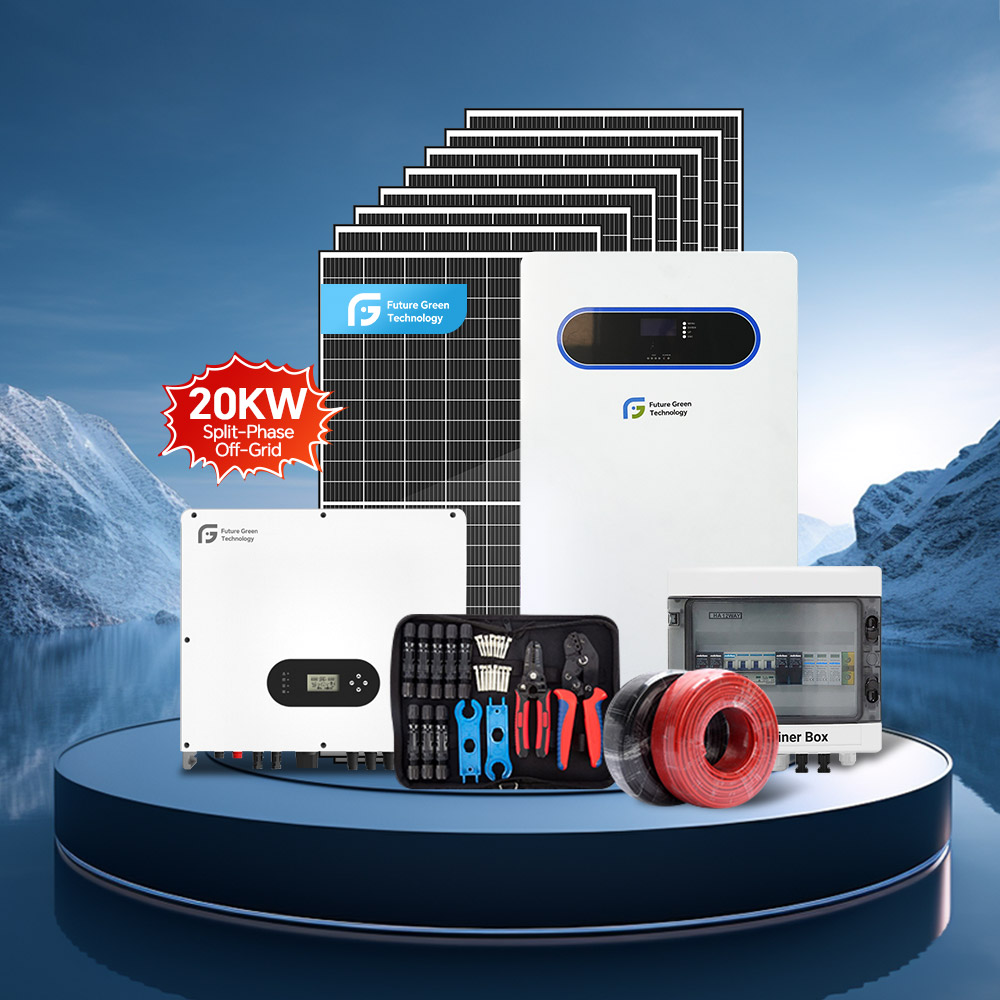

Complete 20kW Home Hybrid PV‑Storage Kit 625W Bifacial Panels with 30kWh LiFePO4 Battery

Complete 20kW Home Hybrid PV‑Storage Kit 625W Bifacial Panels with 30kWh LiFePO4 Battery

Complete 20kW Home Hybrid PV‑Storage Kit 625W Bifacial Panels with 30kWh LiFePO4 Battery

✔ System Power: 20kW Home Solar Energy Hybrid System
✔ Solar Input: 20.8kW PV Module Array
✔ Battery Capacity: 30kWh LiFePO4 Battery Pack
✔ Output Voltage: 110V/220V Pure Sine Wave
✔ Daily Power Generation: Approx. 233.7kWh

Not sure about the system size?

Use our smart tool to calculate your energy needs accurately.

📊 Free Sizing Calculator

  • Номер изделия :

    20kW All‑In‑One Residential Solar

  • Панель :

    625w Bifacial Panel

  • Батарея :

    30kwh LiFePo4

  • Инвертор :

    10kw Inverter*2
Inquiry Now

True Energy Independence. Delivered.

The 20kW off-grid solar packages detailed below are engineered for total self-reliance. Designed by FGET’s elite technicians, these standalone systems capture maximum solar yield and store it efficiently—ensuring your life never stops when the grid goes down.

System Architecture

20kW
Output Power
28.8kWh
Battery Storage
20.8kW
Solar Input
110/220V
Dual Voltage

What Can This System Run?

A typical daily load scenario operating comfortably within the 28.8kWh storage capacity.

Appliance Qty Rating Usage Daily Total
LED Lighting 10 18W 5h 900 Wh
Computer 2 100W 5h 1,000 Wh
55" Smart TV 1 100W 6h 600 Wh
Microwave 1 2000W 0.5h 1,000 Wh
Water Pump 1 400W 1h 400 Wh
180L Refrigerator 1 50W 24h 1,200 Wh
Washing Machine 1 300W 1h 300 Wh
2HP Air Conditioner 2 1600W 6h 19,200 Wh
Total Daily Estimated Load 24.60 kWh

Is your daily usage different?

Build your own load profile and let our tool calculate the exact panel and battery size you need.

Launch Free Calculator

What's Inside the Package

☀️

625W Mono Half-Cell Panels

Type: High-Efficiency Cell Technology

Max Power: 625W

Voltage: 46.54V (Vmp) ; 12.78A (Imp)

Warranty: 25-year linear performance

Package Qty

32 Pcs

Total Weight

1056 kg

580W Solar panel
⚡

20kW Hybrid MPPT Inverter

Output Capacity: 20000W

Input/Output: DC48V in, AC220V/110V out

Controller: Dual 120A MPPT

Protection: Surge, Short-circuit, Temp limit

Package Qty

2 Pcs

Gross Weight

50 kg

10kW Solar Inverter
🔋

28.8kWh LiFePO4 Battery Bank

Chemistry: Advanced LiFePO4

Capacity: 48V/300AH (14.4kWh)

Service Life: 5~8 years operational life

Feature: Supports Parallel Connections

Package Qty

2 Units

Gross Weight

276 kg

Lithium Ion Battery Pack
🏗️

Mounting System

Mounting System

Type: Roof/Ground type mounting rack

Material: Aluminum alloy with complete fittings

Note: Can be customized per request

Weight
54 kg
Volume
0.4 m³
Qty
1 set
🔧

Distribution Box

Distribution Box

Components: DC and AC breakers

Protection: Full protection system

Includes: Tools for solar panel installation

Weight
2 kg
Volume
0.01 m³
Qty
1 pc

Knowledge Base & FAQ

Q1: Can this 20kW off-grid system run home appliances?
A1:
Yes. The 20kW system with 28.8kWh battery storage perfectly supports daily home loads such as lighting, TV, refrigerator, water pump, washing machine and 2HP air conditioners, fully covering family daily electricity demand.
Q2: How much space is needed for this 20kW system?
A2:
This 20kW system matches 36pcs 580W solar panels, requiring about 70–90 square meters of shadow-free space. It supports rooftop, ground mounting and can be customized according to your site condition.
Q3: What output voltage does the inverter support?
A3:
The 20kW hybrid inverter adopts DC48V input and supports dual 110V/220V AC output, suitable for most household electricity standards in different countries.
Q4: What is the specification of the battery bank?
A4:
Equipped with 2 units 48V 300Ah LiFePO4 batteries, total 28.8kWh capacity. It supports parallel connection, long service life and stable power supply for all-day household use.
Q5: What warranty do the components have?
A5:
580W solar panels come with 25-year linear performance warranty; inverter and battery have 5–8 years service life with reliable after-sales technical support.
